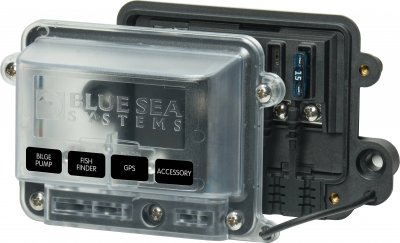

ST-Blade Water-Resistant Fuse Block
535 SEK
Provides water-resistant circuit protection for ATO-ATC fuses & circuit breakers in a compact footprint. The single nested design allows for wire entry from one side to maximize space. Fuses not included.
Features:
- Water-resistant design with standard ring or fork type terminals allows for simple wiring with standard tools
- Accepts a wide range of wire sizes
- Includes 3 wire plugs to maintain water resistant rating if less than 4 loads are required
- Accepts ATO and ATC fast-acting blade fuses
- Accepts ATO/ATC-Style Low Profile Circuit Breakers
- Nests with other ST-Blade Water-Resistant Fuse Blocks and Water-Resistant 100A Bus Bars to reduce wire
- Insulating cover meets ABYC/USCG insulation requirements
- Tin-plated copper busses and fuse clips
- Includes four write-on circuit labels
- Small format standard and custom labels available
- Spare fuse and fastener storage in cover
Specifications:
- Wire Size: (1) 8 AWG to 4 AWG – Input, (4) 16 AWG – 10 AWG – Load
- Maximum Voltage: 32V DC
- Circuits: 4
- Screw Terminal Type: #8-32 Screws with captive star lock washer
- Bus Material: Tin-Plated Copper C 11000
- Mounting Holes: Clearance for ¼" (6mm) screws
- Compact Size: 5.40"W x 3.40"H x 2.0"D
- Betala säkert med kort
- Maila oss, vi svarar snabbt!
- Frågor? Ring +46 8 5511 5888
- ButiksadressVendelsömalmsvägen 94, 13669 Vendelsö, Sweden
- Butikskodnativesweden1
- VarumärkeBlue Sea Systems
Beskrivning
Art.nr: 5056-BSS
Provides water-resistant circuit protection for ATO-ATC fuses & circuit breakers in a compact footprint. The single nested design allows for wire entry from one side to maximize space. Fuses not included.
Features:
- Water-resistant design with standard ring or fork type terminals allows for simple wiring with standard tools
- Accepts a wide range of wire sizes
- Includes 3 wire plugs to maintain water resistant rating if less than 4 loads are required
- Accepts ATO and ATC fast-acting blade fuses
- Accepts ATO/ATC-Style Low Profile Circuit Breakers
- Nests with other ST-Blade Water-Resistant Fuse Blocks and Water-Resistant 100A Bus Bars to reduce wire
- Insulating cover meets ABYC/USCG insulation requirements
- Tin-plated copper busses and fuse clips
- Includes four write-on circuit labels
- Small format standard and custom labels available
- Spare fuse and fastener storage in cover
Specifications:
- Wire Size: (1) 8 AWG to 4 AWG – Input, (4) 16 AWG – 10 AWG – Load
- Maximum Voltage: 32V DC
- Circuits: 4
- Screw Terminal Type: #8-32 Screws with captive star lock washer
- Bus Material: Tin-Plated Copper C 11000
- Mounting Holes: Clearance for ¼" (6mm) screws
- Compact Size: 5.40"W x 3.40"H x 2.0"D
